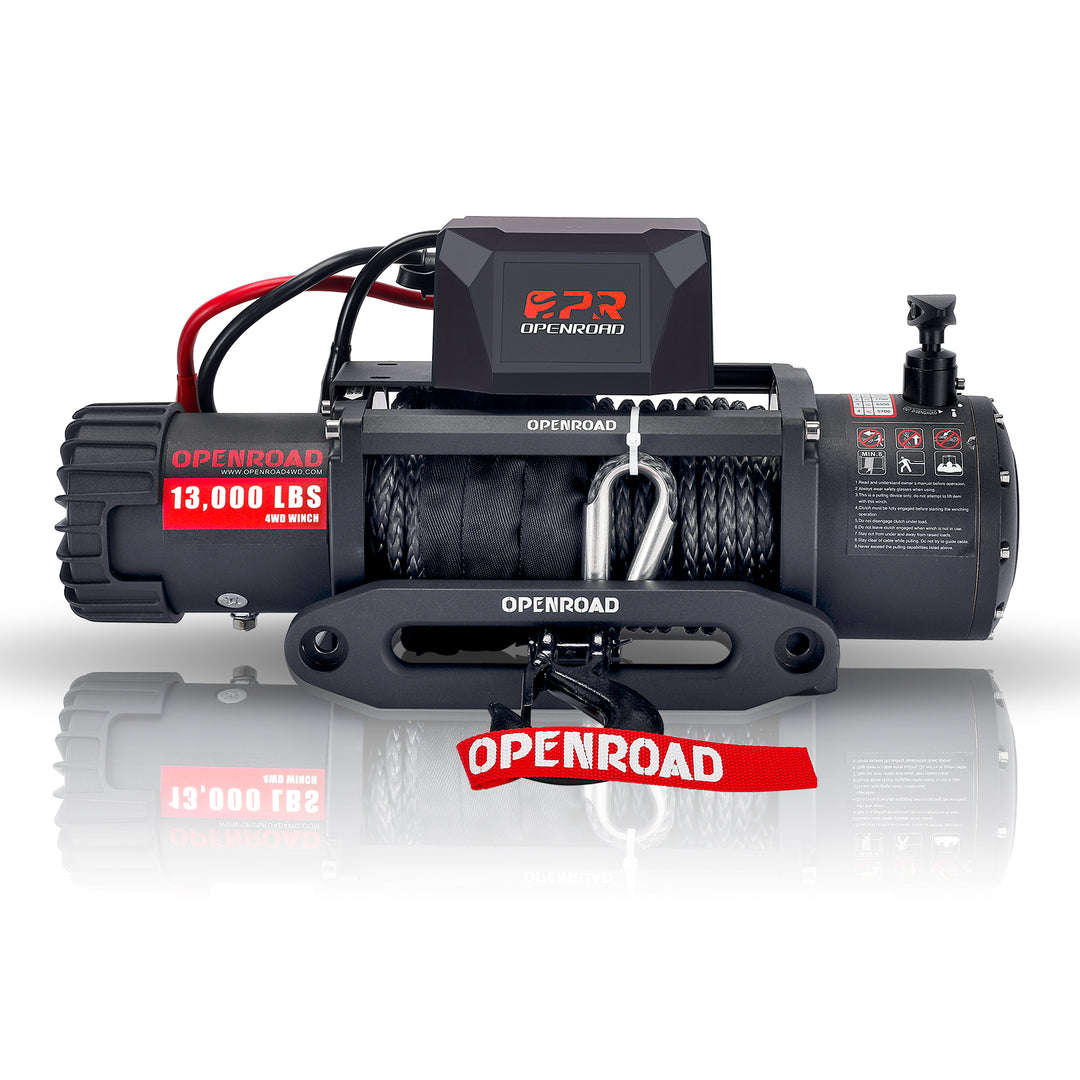

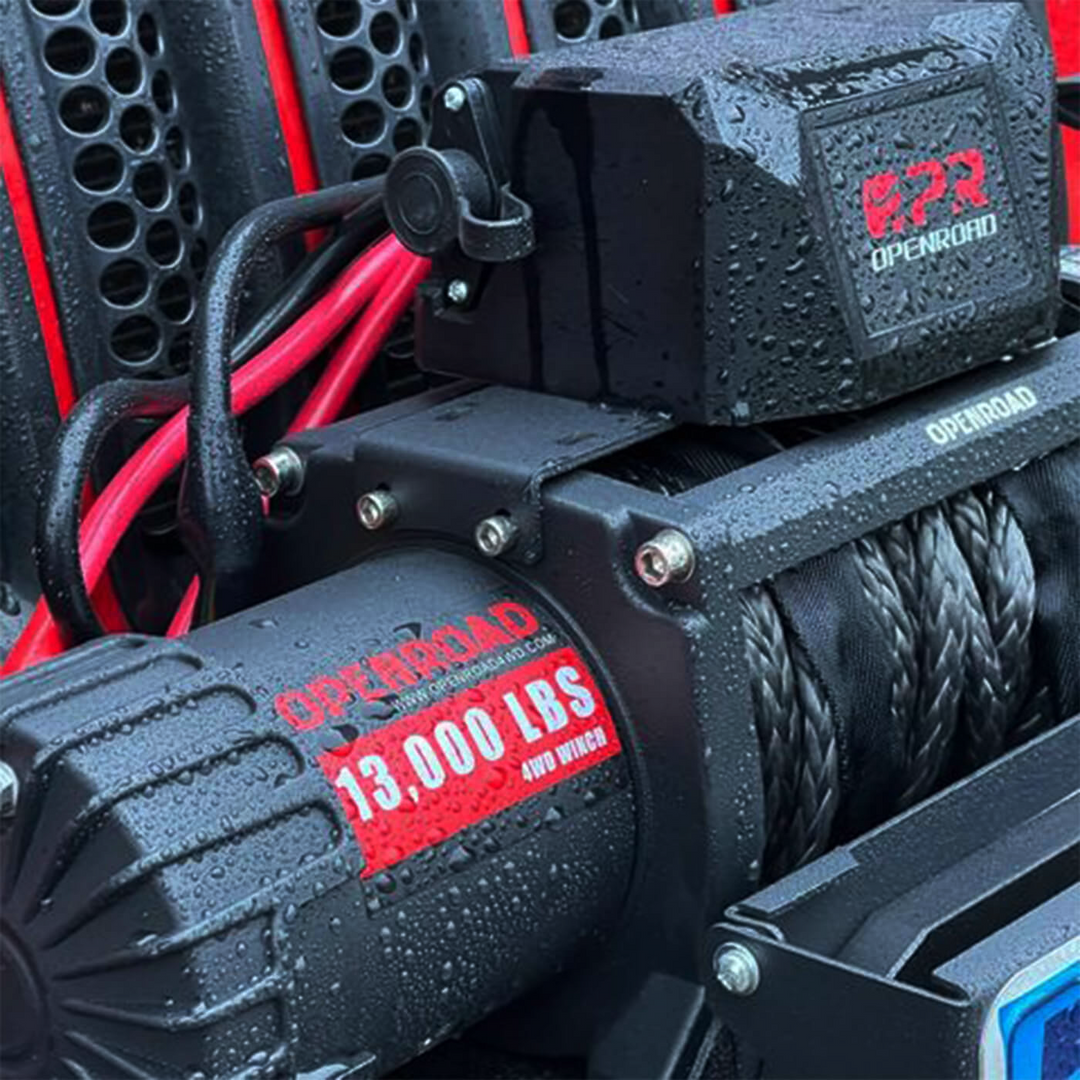

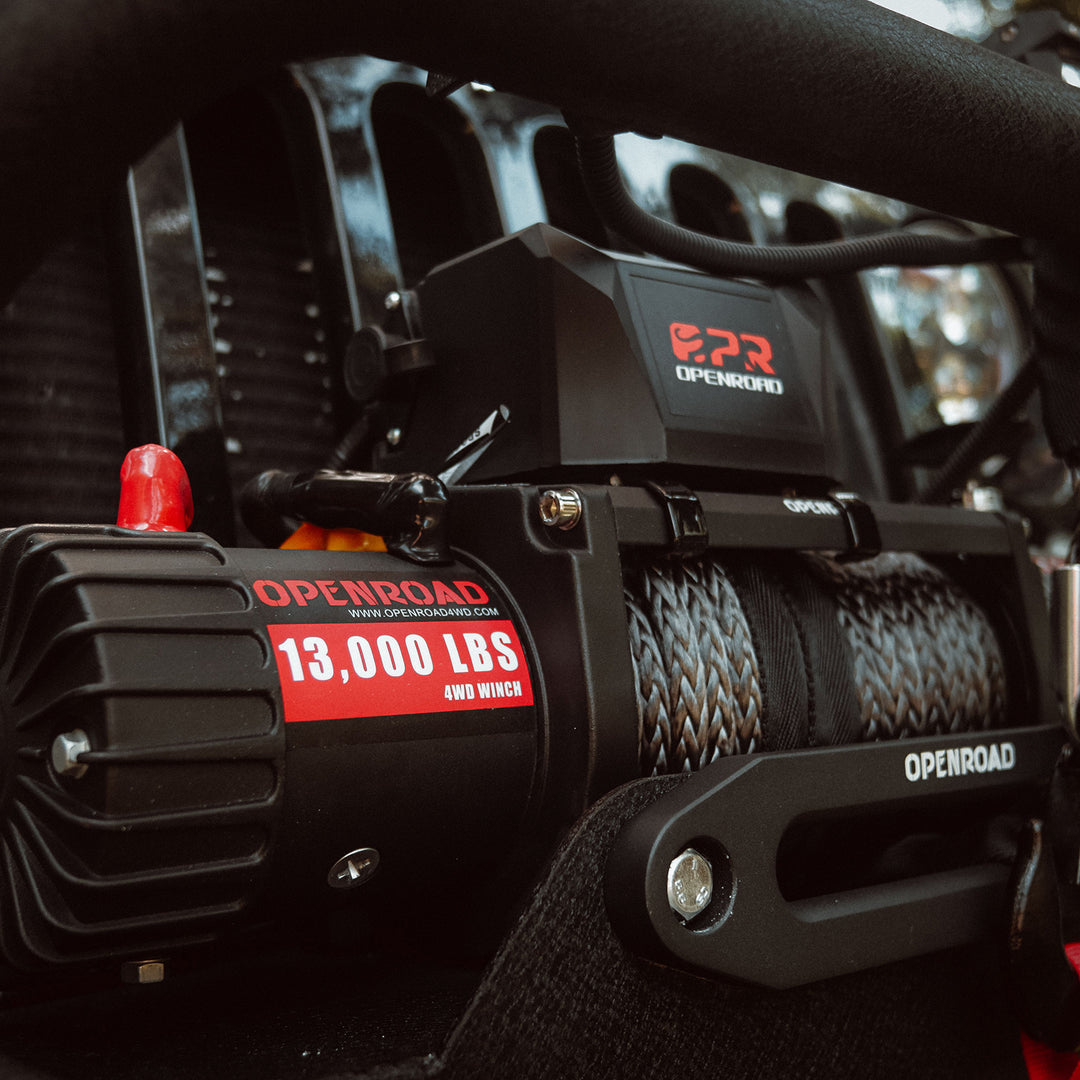

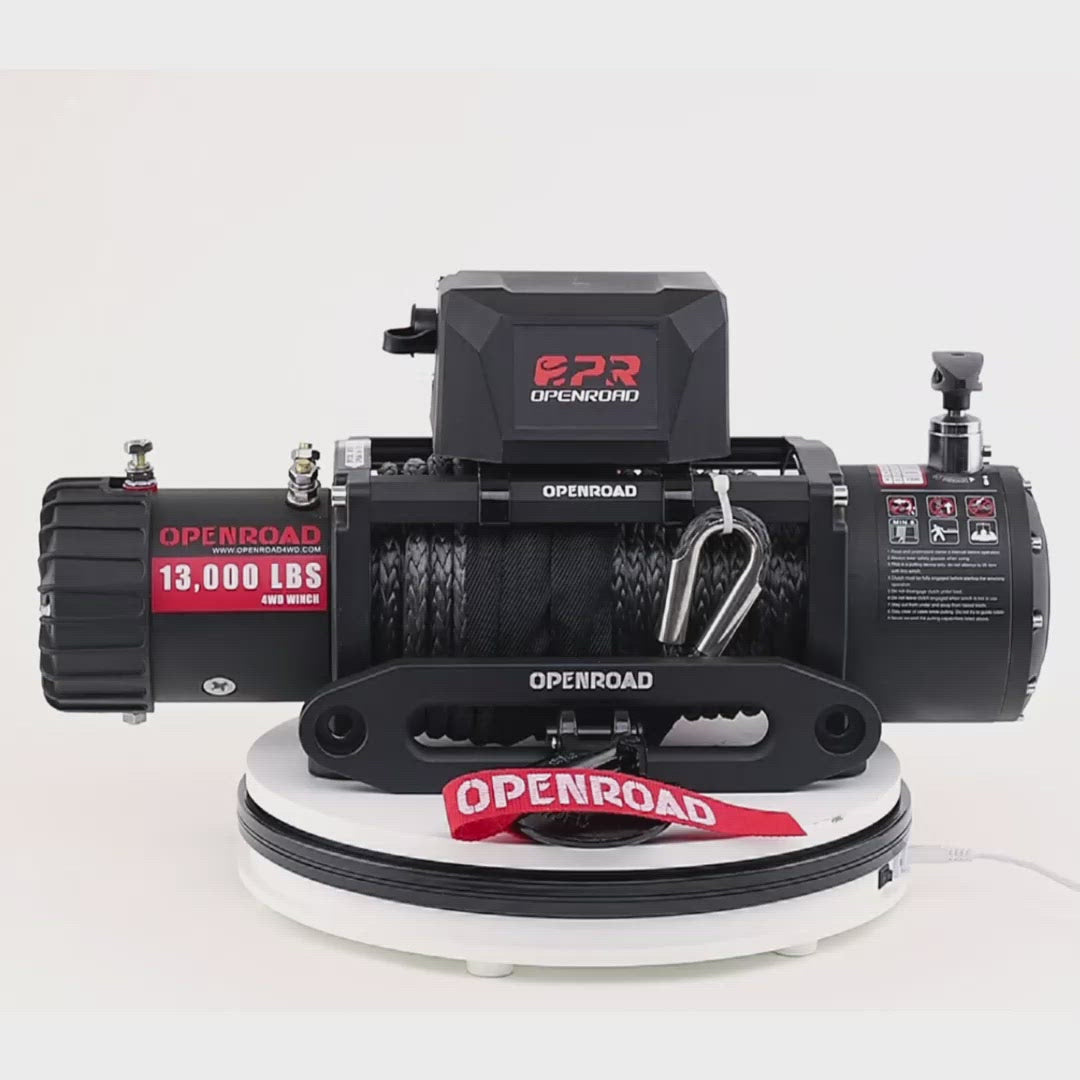

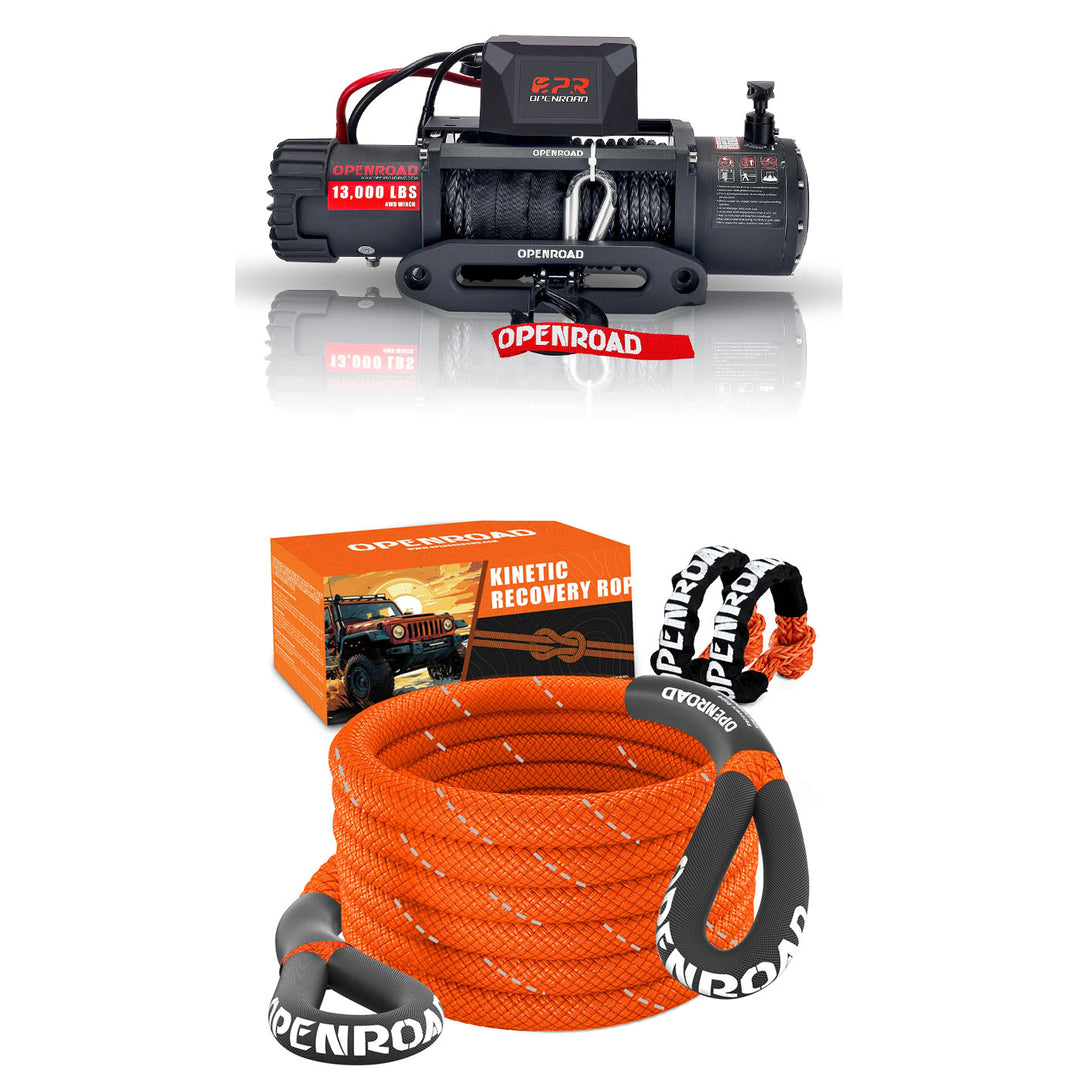

OPENROAD Panther Series 2S Electric Winch
Panther Series 2S Winch has an IP67 waterproof rating, rated line pull of 12,000 pounds (5,443 kilograms) in a single line. Motor of 6.0hp series wound, the remote switch reaches 50 feet (15m) lead. The gear train is of integrated planetary, Gear ratio is of 265:1.And equipped with wired remote control and wireless remote control for the winch. Has a high cost performance.

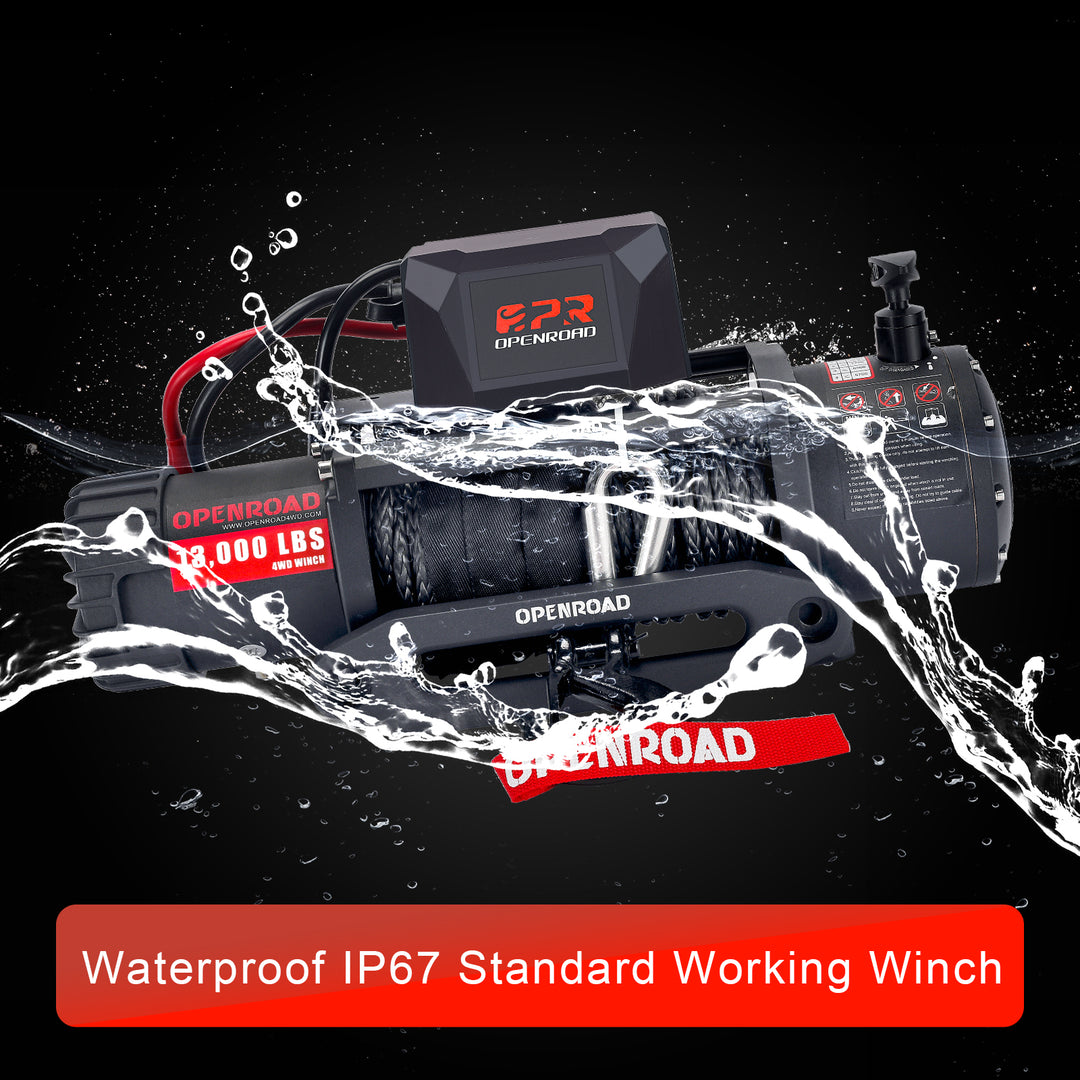

IP67 Waterproof Rating
The Panther Series 2S is waterproof to the strict IP67 standard and can perfectly withstand water, mud, dust, and sand. Suitable for any harsh environment, providing reliable recovery every time to get you back home safely.

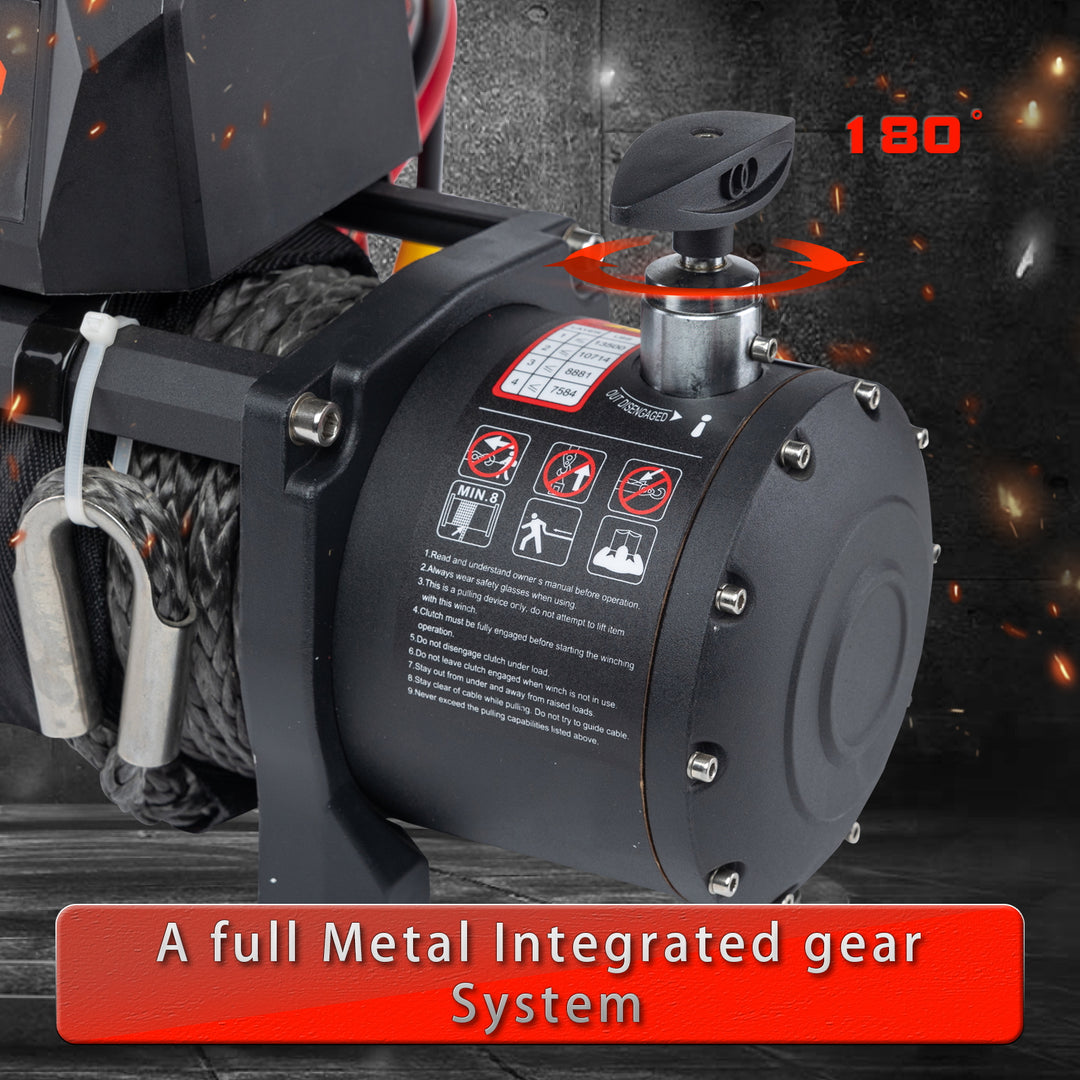

Integrated gear system
The Panther Series 2S features an integrated gear system with a 265:1 gear ratio. The new integrated gear system reduces gear sticking and improves running stability.

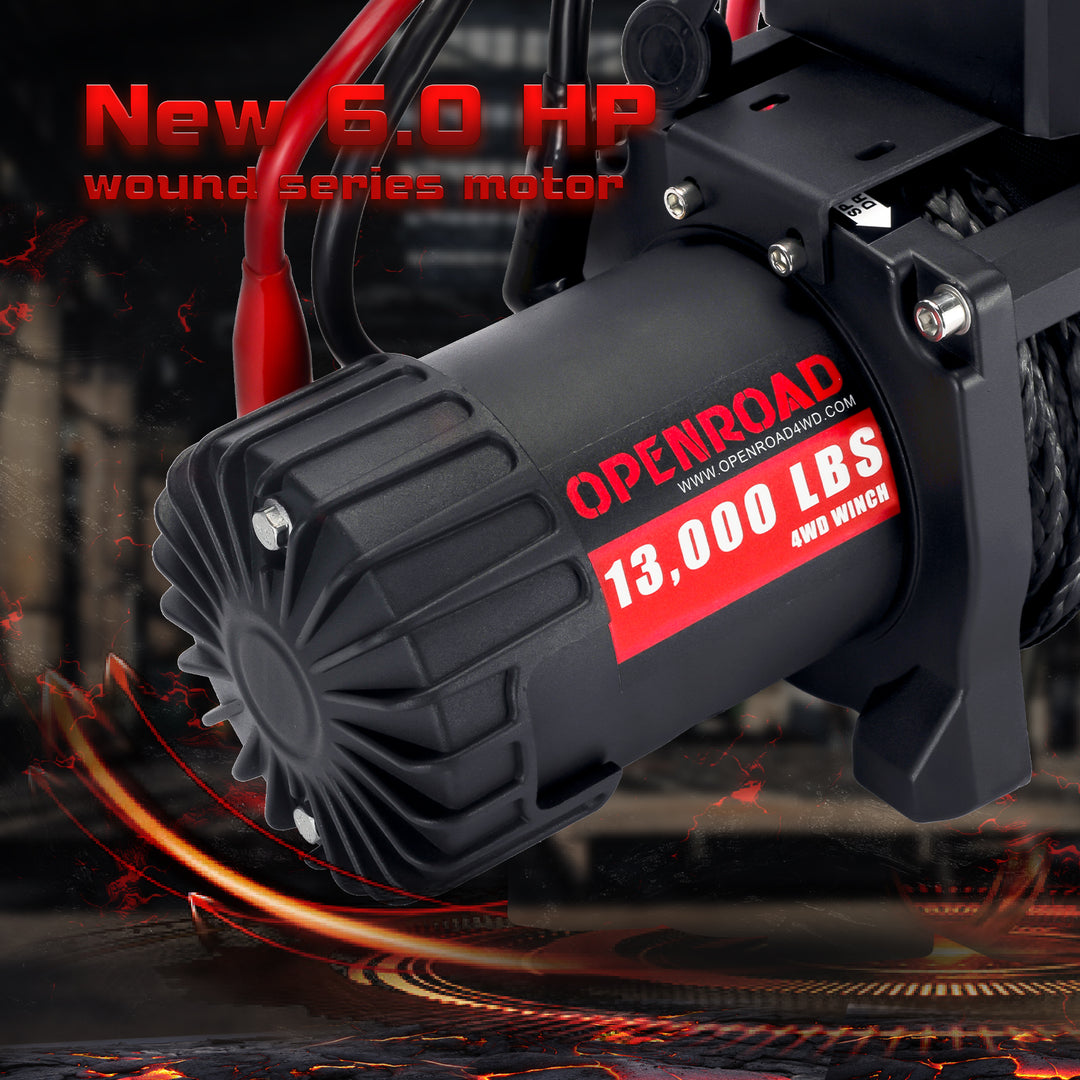

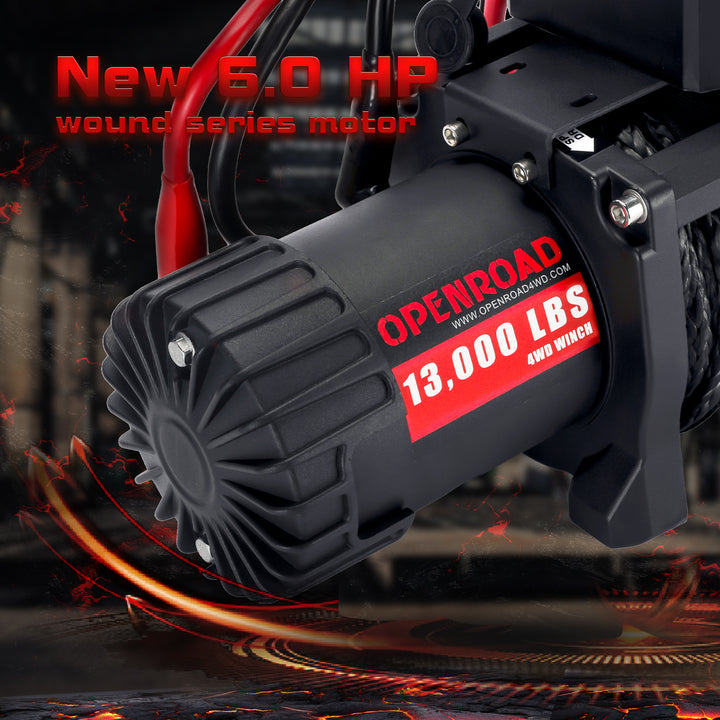

Brand New 6.0 HP Motor
High-performance pure copper motor, high-efficiency 6.0HP/4.5 Kw series electric motor, can provides stronger pulling power.
Panther Series 2S has been upgraded on the original remote control, adding a mos to make the signal transmission of the remote control more stable.with an unobstructed transmission range of up to 50 ft.
The mounting screws are changed to Dacromet screws, which are super corrosion-resistant, not easy to rust, and will not be difficult to remove after long-term use.
Hook Bracket + Hat + Sticker
We've added hook holders, hats, stickers to the package. The hook frame can be directly installed on the rope guide to fix the winch hook, preventing the hook from moving back and forth and damaging the car. We also prepared hats and stickers for our fans, welcome to join openroad.
Specification & Package
|Single Line Rated Pull||12000lbs(5443kgs)|
|Extra Wireless Remote Switch||optional|
|Gear Train||3 Stage Planetary|
|Gear Reduction Ratio||265:1|
|Braking||automatic Load-holding Brake|
|Drum Size||diameter 2.5”(63.5mm)xlength9.6”(224mm)|
|Remote Control Switch||included|

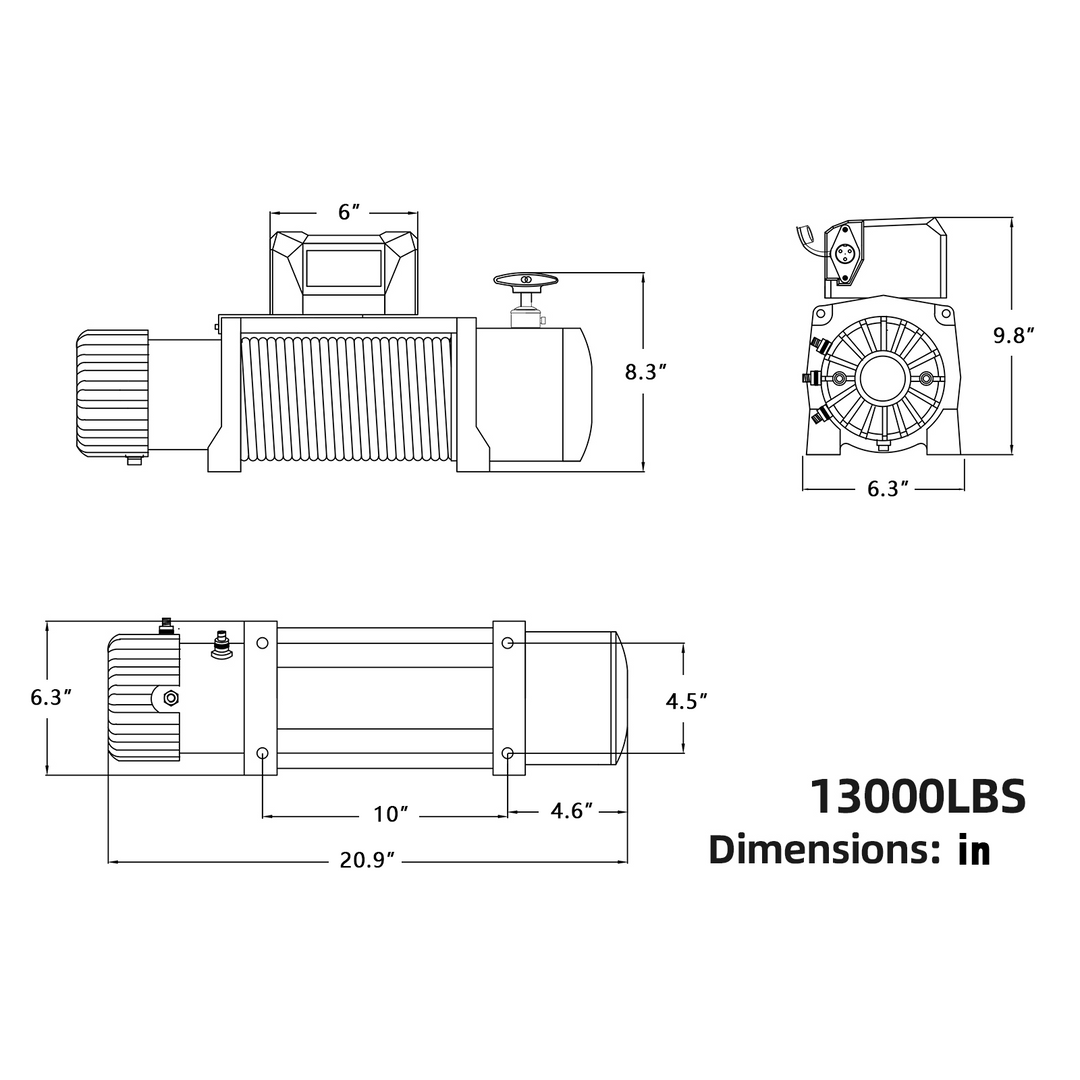

|Overall Dimension(length x width x height)||20.8”x6.3”x8.6”(530x160x218mm)|
|Mounting Bolt Pattern||10”x4.5”(254x114.3mm)|

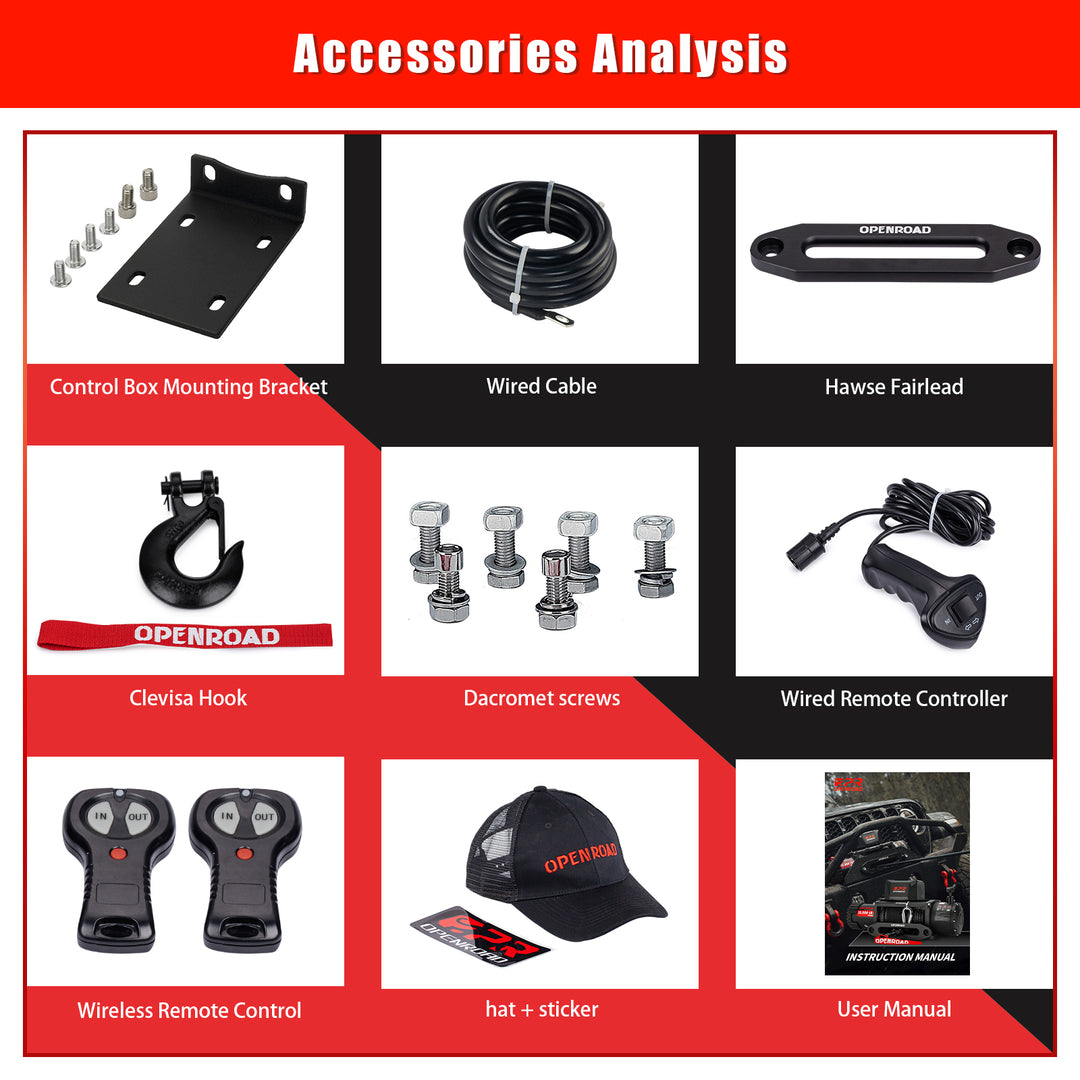

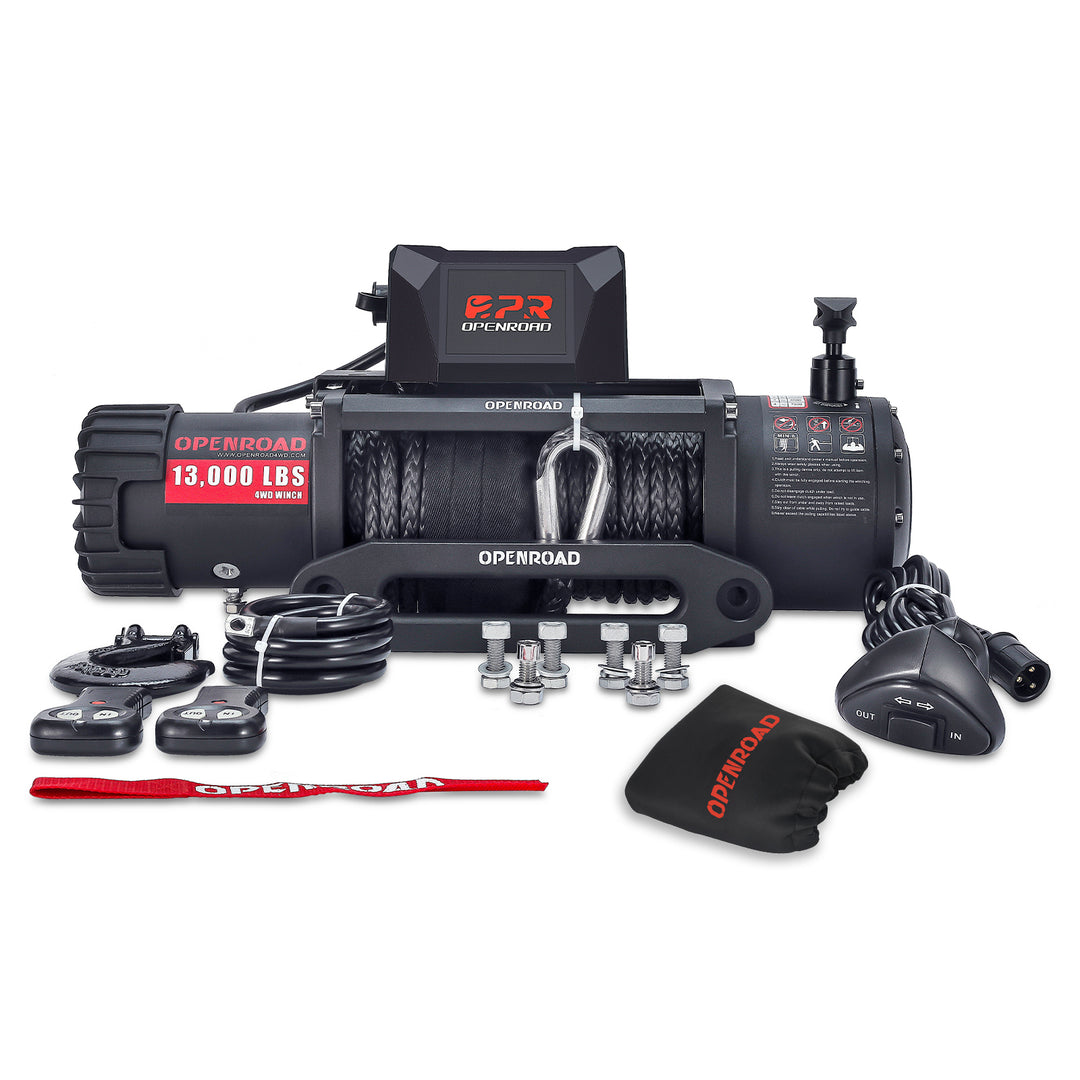

|12000LBS winch x1|
|Wired remote control x1|
|Wireless remote control x2|
|Motor lead x3|
|Aluminum cable fairlead x1|
|Double hook x1|
|Power cord x1|
|Bolt set x1|
|Control box x1|
|User Manual x1|
Panther Series Upgrade
Our team has upgraded the Panther Series 2 and Panther Series 2 plus winches. The new Panther Series 2s and Panther Series 2s plus have new design colors, and we have added two contrasting color personalized winches for everyone to buy, corresponding to everyone For the problems encountered in use, we have upgraded specific parts and prepared gifts for our fans, come and see what we have improved.
A new Mos is added inside the control box
For the remote control, we have upgraded the common winch on the market and the remote control module used in the Panther Series 2, adding a Mos that can make the signal transmission more stable.
We changed the 3-stage planetary gear to integrated planetary, which can reduce the gear jam and improve the stability of the winch operation.

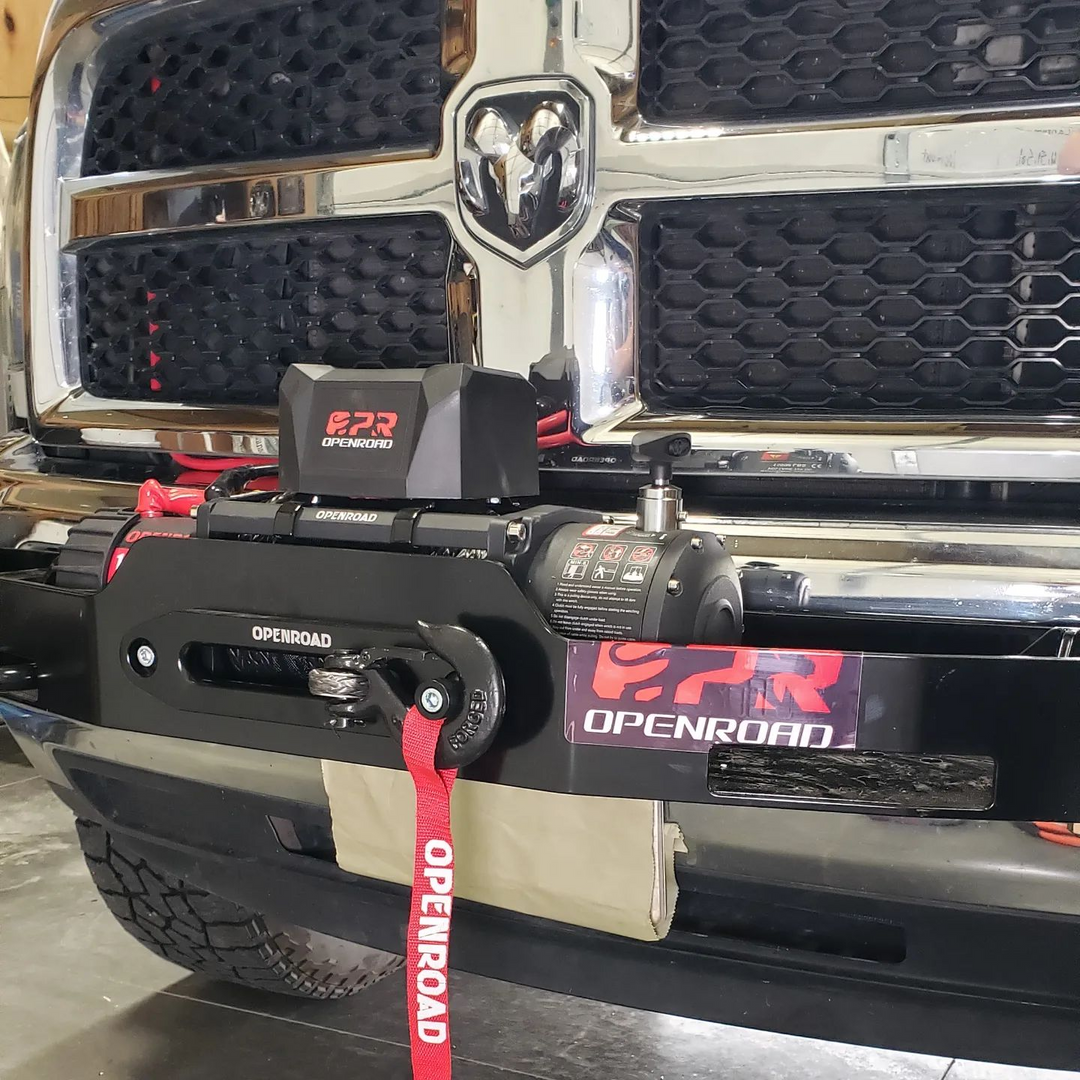

Newly added hook rack
We've added a new winch hitch bracket to the package, so your winch won't wear out or break your car with the hook swinging around after it's installed.
Mounting screws changed to Dacromet
The installation screws are replaced by DACROMET screws.The super corrosion resistance allows you to not care about the rust of the screws during long-term use. slip.
Packaging uses thickened foam packaging
We've upgraded the product's box with denser and thicker foam, which is stronger and prevents the package from being damaged in transit.
Complimentary car stickers and hats
We have car stickers and hats for our fans and followers, join us and let openroad accompany you.
