The Panther Series 2S is the perfect off-road recovery equipment. It's waterproof with an IP67 rating, protecting against water, mud, dust, and sand. The matte black finish resists corrosion and damage from rain, snow, and dust. Depend on its reliable recovery and get back home safely with the Panther Series 2S.
Our high-performance 6.0HP/4.5Kw pure copper motor delivers lightning-fast line speed and reliable pulling force, withstanding large torque without deformation or cracking. With differential speed, deceleration, and reversal functions, it provides complete control on any terrain

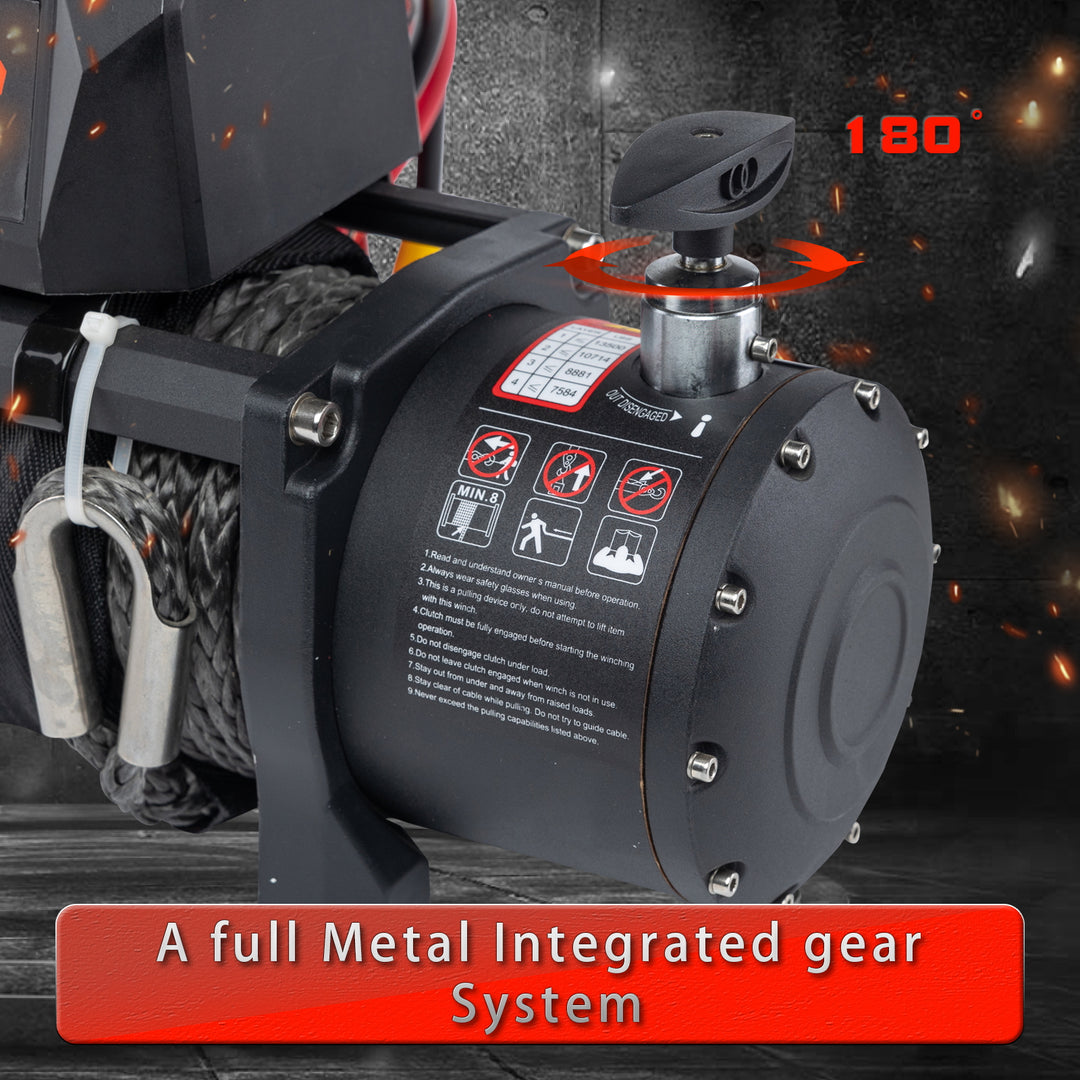

The Panther Series 2S has an advanced integrated gear system with a 265:1 ratio. Its structural design minimizes gearbox heat and reduces gear failures, ensuring reliable performance in tough off-road conditions.
Specification | |
Brand | OPENROAD |
Single Line Rated Pull | 13000lbs(5909kgs) |
Motor | 6.0hp/4.5kw,series Wound |
Control | remote Switch |
Extra Wireless Remote Switch | optional |
Gear Train | Integrated Gear |
Gear Reduction Ratio | 265:1 |
Braking | automatic Load-holding Brake |
Synthetic Rope |
3/8"(9.5mm)x85'(26m) |
Drum Size |
diameter 2.5" (63.5mm)xlength9.6"(224mm) |
Remote Control Switch | included |
Battery | recommended 650cca |
Line Speed | 4.1ft(1.25min) |
Current A | 415 |
Net Weight | 28kgs |
Overall Dimension(length x width x height) |
20.8"x6.3"x8.6" (530x160x218mm) |
Mounting Bolt Pattern |
10”x4.5"(254x114.3mm) |
13000LBS Package |
13000LBS winch x1 |
Wired remote control x1 |
Wireless remote control x2 |
Motor lead x3 |
Aluminum cable fairlead x1 |
Heavy duty hook x1 |
Power cord x1 |
Bolt set x1 |
Control box x1 |
User Manual x1 |
